Sealing
Sealing Seal Strip Material and Application
Material: Ethyle Propylene Diene Monomer (EPDM) seal strip.
Application locations: It is mainly used in three places:
- Between the indoor side glass and the glazing bead.
- Between the outdoor side glass and the window sash.
- Between the window sash and the window frame.
Sealing Solution Comparison Seal strip
Standardized, pre-installed at the factory, reducing the need for labor and additional materials. More recommended.
Manual caulking: The effect is comparable to that of seal strips, but not as standardized.
Seal Strip between Window Sash and Window Frame
Importance: It plays a crucial role in air tightness, water tightness, insulation, and sound insulation performance.
Three-seal system:
- Outdoor side stop seal strip: Water blocking, prevents direct impact of rainwater.
- Middle pressure equalization seal strip (main seal strip): Interlocks with the thermal break strip, forming a vertical isothermal structure, with an interlocking depth of not less than 3mm.
- Indoor side stop seal strip: Prevents moisture evaporation and backflow, serving as the final guarantee.
Inspection of seal strips
Inspection method: In addition to visual inspection, you can also try to see if paper can be pulled out.
Impact of Hinge Type on Sealing
Exposed hinges: Require cutting the indoor side stop seal strip, compromising the integrity of the seal.
Concealed hinges: Recommended for use, maintaining the integrity of the seal.
Hardware
Types of Hardware
Includes handles, hinges, transmission accessories, locking accessories, and auxiliary accessories such as lifting blocks, anti-fall devices, limiters, etc.
Market Situation
Door and window brands usually do not develop their own hardware but choose to purchase it, as it is more cost-effective, convenient, and reliable. WOODWORK is a company that has its own research and development center and manufacturing center.
If you want to know more about us, click here: About – Woodworktech
Different price points of windows use different levels of hardware, all with quality assurance.
Types of Hinges
Exposed hinges (pillar hinges): They compromise the integrity of the indoor side stop seal strip.
Concealed hinges (mortise hinges): More popular, allowing for 180° opening.
Trends in Handles
Handles without a base or with a small base are more aesthetically pleasing and have a better feel.
If you want to know more about handles, click here: Handle – Woodworktech
Electric Windows and Smart Homes:
The supporting systems are now mature, and they can be achieved by adding motors and transmission accessories. For example, supporting MIJIA allows doors and windows to be connected to a smart home system, and then equipped with water leakage sensors, temperature and humidity sensors, door and window sensors, air quality detectors, etc. It is also possible to achieve various automations and scenarios, such as automatically closing windows when the air conditioner is turned on, closing windows when it rains, and opening windows when the air quality is poor.
Screen Windows
Roll-up Style (Invisible Screen Window):
Features: Does not block the opening sash, convenient to use.
Compatibility: Hinged/Sliding windows.
Disadvantages: The screen mesh is made of polyester fiber, which is low in strength, easily damaged, and offers no protective function.
Sliding Screen Window:
Features: Easy to install.
Compatibility: Only suitable for sliding windows.
Installation: Clips into the track.
Frame-within-Frame Screen Window
Features: Cannot be opened, can only be removed. Compatibility: Only suitable for casement windows. Disadvantages: Inconvenient to use.

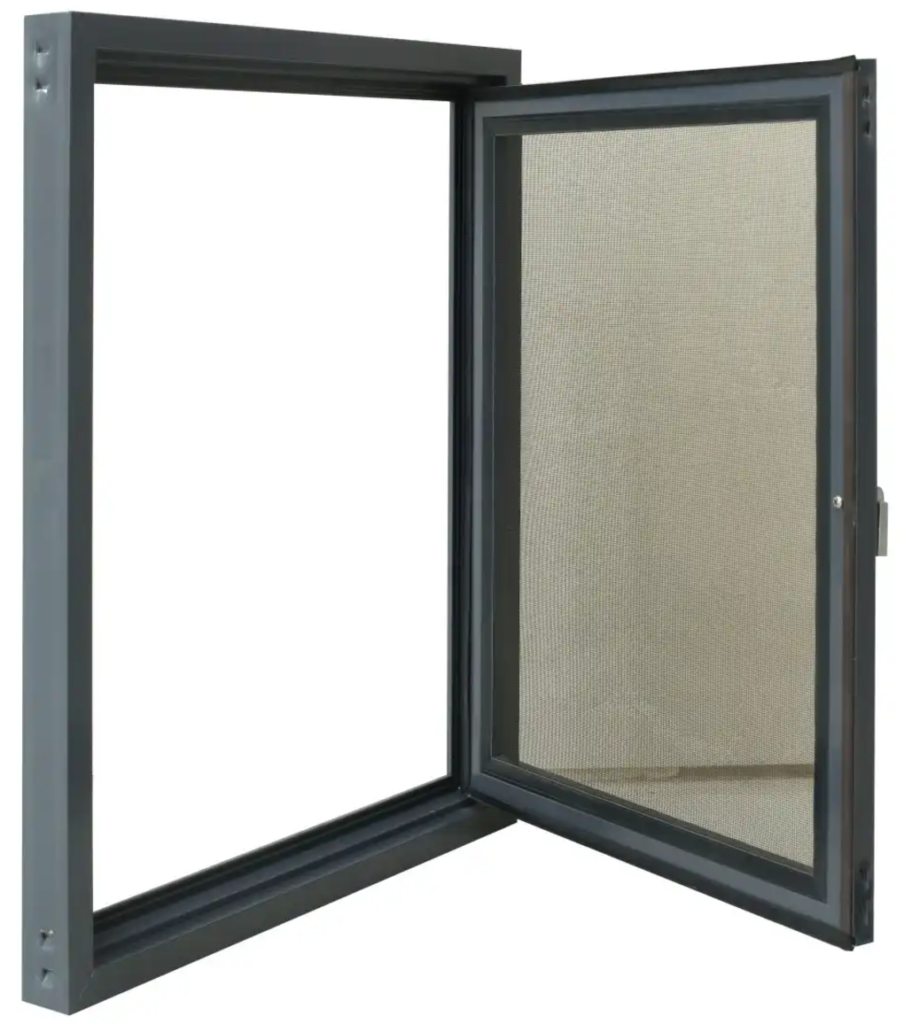

Casement Screen Window
The most common on the market.
Compatibility: Casement windows
Screen Material
Stainless steel mesh and high transmittance mesh.
Stainless Steel Mesh: Made of woven stainless steel with a coating, strong, offers protective features, but affects light and ventilation.
High Transmittance Mesh: Made of stainless steel, with thin threads, good light transmittance, but relatively weaker in protective features.
